RW-M65-B-KURO

Regular price$440.00
/
Tax included. Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way

PCB
Edition
Note

This keyboard will have a set of shims included, for any alignment issues with the subassembly.

You can find more information and the installation guide for these shims here.

Product Name:

RAMA WORKS® M65-B

Part Number:

RW-M65-B-XXXX

Specifications:

Finish:
Top:
Anodized bead-blasted Aluminium

TANK: PVD Mirror-Polished Brass

MILK / YOLK: Electrophoresis

Base:

Anodized bead-blasted Aluminium

TANK: PVD bead-blasted Brass

Interface:
USB-C

Layout Options:
HOTSWAP: Fixed
SOLDERABLE: 2U backspace (or split) / stepped caps

Weight:
M65-B (without switches/caps): 1700 grams
M65-B (with interior weight): 2500 grams

M65-B TANK (without switches/caps): 4400 grams
M65-B TANK (with interior weight): 5200 grams

Weight figures are approximate.

Features:

8.0° angle
Surface Mounted RGB LED's
MUTE mounted isolated plate
PCB compatible with QMK firmware
VIA Configurator (realtime configuration of LED's and layout)

Editions:

KURO (Black) Top / KURO Base with KURO Brass Plate
MOON (Grey) Top / KURO Base with MOON Brass Plate
ICED (Clear) Top / ICED Base with MIST Brass Plate
MILK (White) Top / KURO Base with KURO Brass Plate
YOLK (Yellow) Top / MOON Base with MOON Brass Plate
ROSE (Rose) Top / KURO Base with ROSE Brass Plate

Contents:

1 x Top Enclosure
1 x Base
1 x Mirror Polished PVD Plate (Brass)
1 x MUTE Mount - ICED (Non-Conductive Silicone)
2 x Custom Moulded RW Feet
4 x RW M2x4 T10 Fixtures
6 x RW M2x3 T10 Fixtures
6 x RW M2x3 CSK T6 Fixtures
6 x RW M2x3.5 Spacer
6 x RW M3x6 T10 Fixtures
1 x M65-B PCB with Kailh Sockets (OR M65-Bx PCB)
1 x RW T10 Torx Tool
1 x RW T6 Torx Tool
1 x Black Metal End USB-C to USB-A cable (USB 3.0) (Braided) - 1.5M
1 x RW Switchpuller XO
1 x Set of Shims
1 x Various Packaging

Keycaps, Switches & Stabilisers

Please note that keycaps, switches & stabilisers are not included and are rendered with the keyboard for artistic purposes only.

Colour Accuracy

The images provided are renders and the final product may differ in colour from the images shown, due to manufacturing process and how images are presented to our viewers (through different displays and perception).

M65-B


With the M65-B, we at RAMA WORKS® are re-engineering one of our more popular boards from the ground up.


Beyond the new engineering redesign, the M65-B boasts per-switch RGB LEDs and USB-C. Also highlighted with this new board is a thoughtful layout which provides all the keys you’ll ever need, for any game or task - elegantly spaced out. Each element of the keyboard is meticulously crafted, from our new countersunk screws to custom-made laser-etched Stainless Steel TORX T10 fasteners.

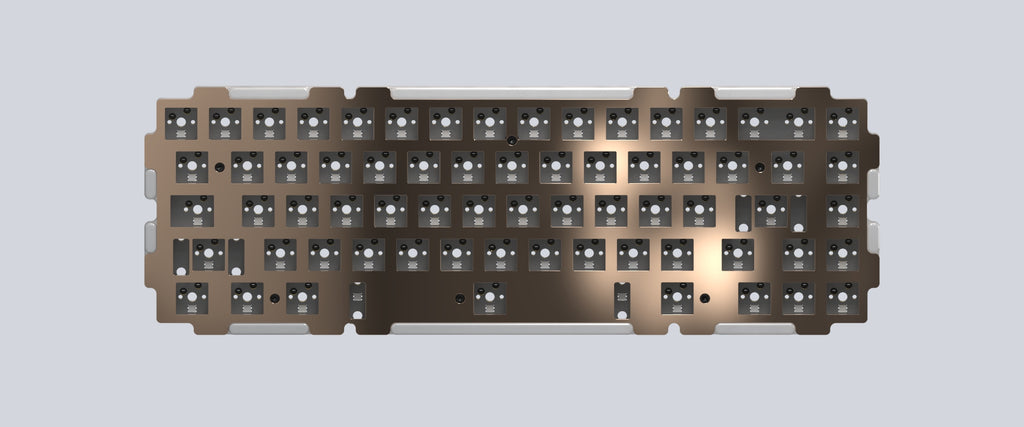

Designed for the ultimate performance, a fully machined brass switch plate sits isolated from the enclosure, its PVD coated and hand-polished to a mirror finish.


In addition to these enhancements in our offering, we are also integrating our previously released MUTE, our engineered mounting technology, made of non-conductive silicone. This new system provides yet an extra layer of response as it deadens the sound while cushioning each keystroke.

RAMA WORKS MUTE


With the M65-B we’re adding our RAMA WORKS® MUTE plate mounting & dampening solution.
For this release of the M65-B it’s being moulded in the ICED colourway, also dispersing more light from the per-switch RGB.

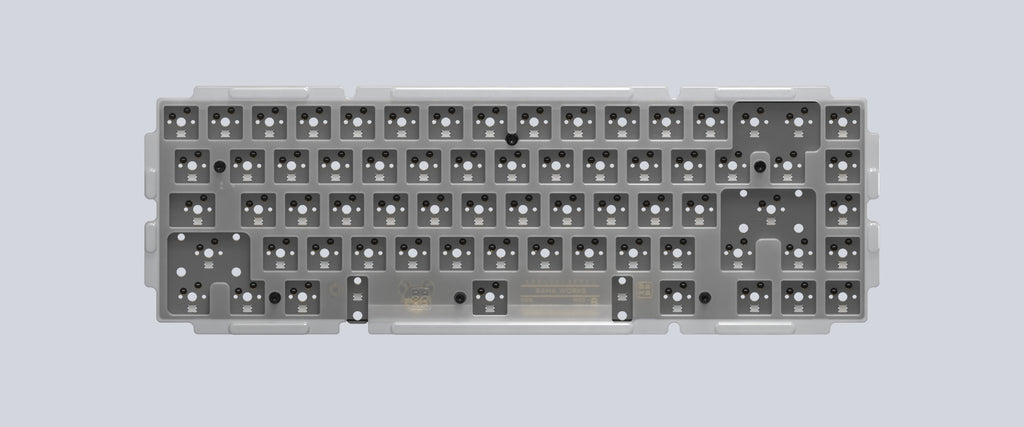

The MUTE isolates the plate inside the enclosure providing a unique typing experience.

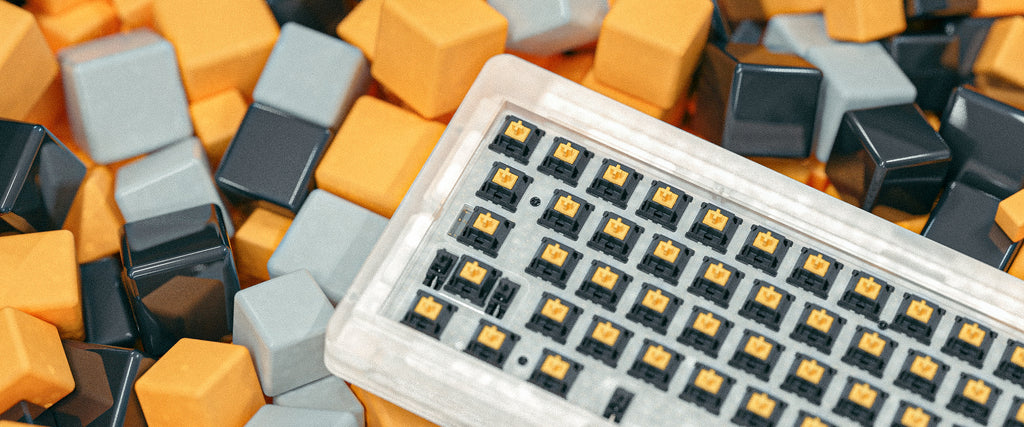

SOLDERLESS OR SOLDERABLE & IN-SWITCH RGB


In an effort to provide the best end-user experience available, the M65-B PCB requires no soldering to construct with any Cherry MX-compatible switches. The M65-B offers a USB-C connection attached to the USB Extension PCB. There are also additional PCBs also available for individual sale. The board includes in-switch RGB LEDs under the PCB, which require no installation. The RGB LED’s (+ animations) and layout are programmable in real-time through our GUI Editor, VIA.


The M65-Bx variant is a solderable version without hotswap sockets for those who are discerning with their switch choice.

LAYOUT


The M65-B HOTSWAP PCB is fixed layout, as shown below. The M65-Bx SOLDERABLE PCB allows a stepped capslock and 2U backspace (or split).

THE EDITIONS


The M65-B comes in a variety of materials and finishes. The ICED edition is CNC Machined Polycarbonate that is finished to give it a brilliant frosted finish. The KURO/MOON edition is CNC Machined Aluminium that is carefully bead-blasted to a consistently smooth finish then anodised to the perfect colour. The YOLK/MILK editions are CNC machined aluminium which are then electrophoretically coated to their bold matte finish; this process has a failure rate in which the failures must be scrapped and cannot be refinished. And finally, the ROSE edition is milled from a solid block of brass to its final form, it then goes through a series of finishes and then polished by hand to a perfect mirror finish.

KURO

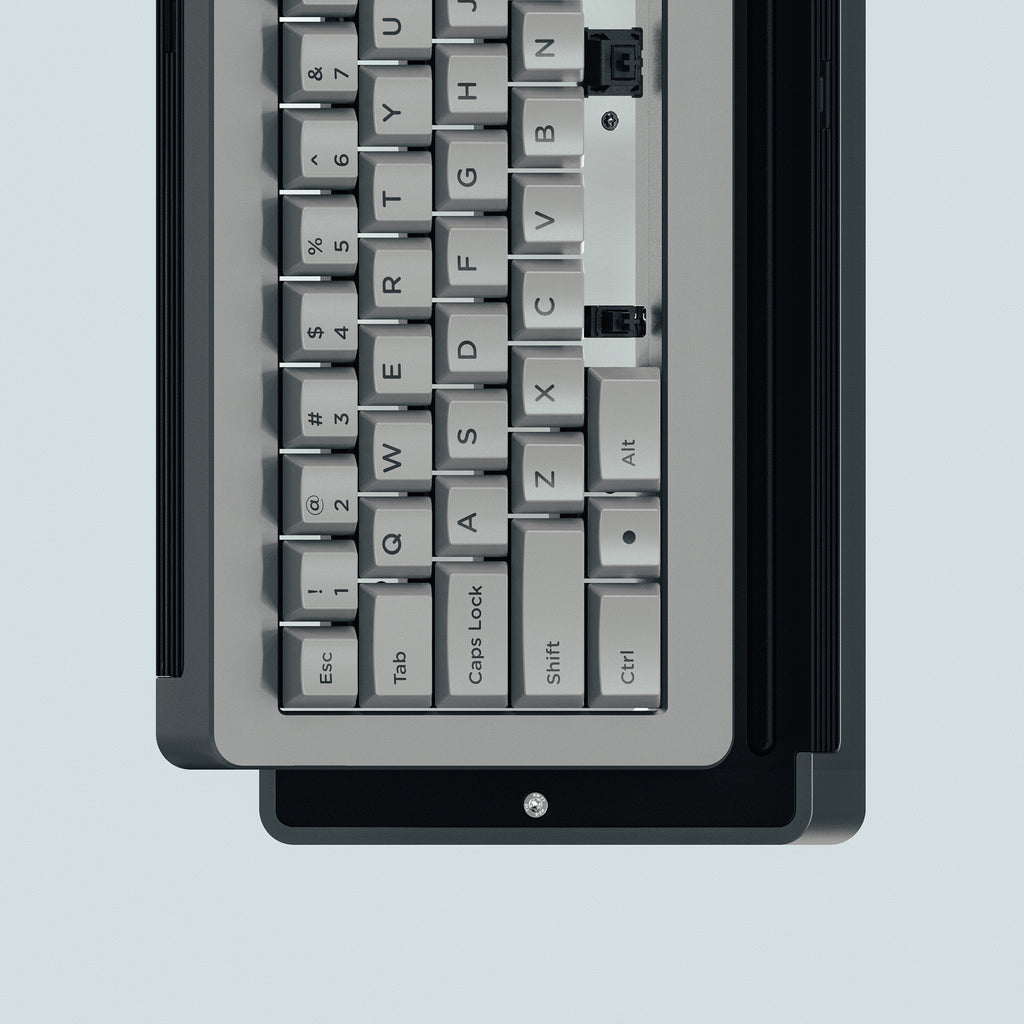

MOON

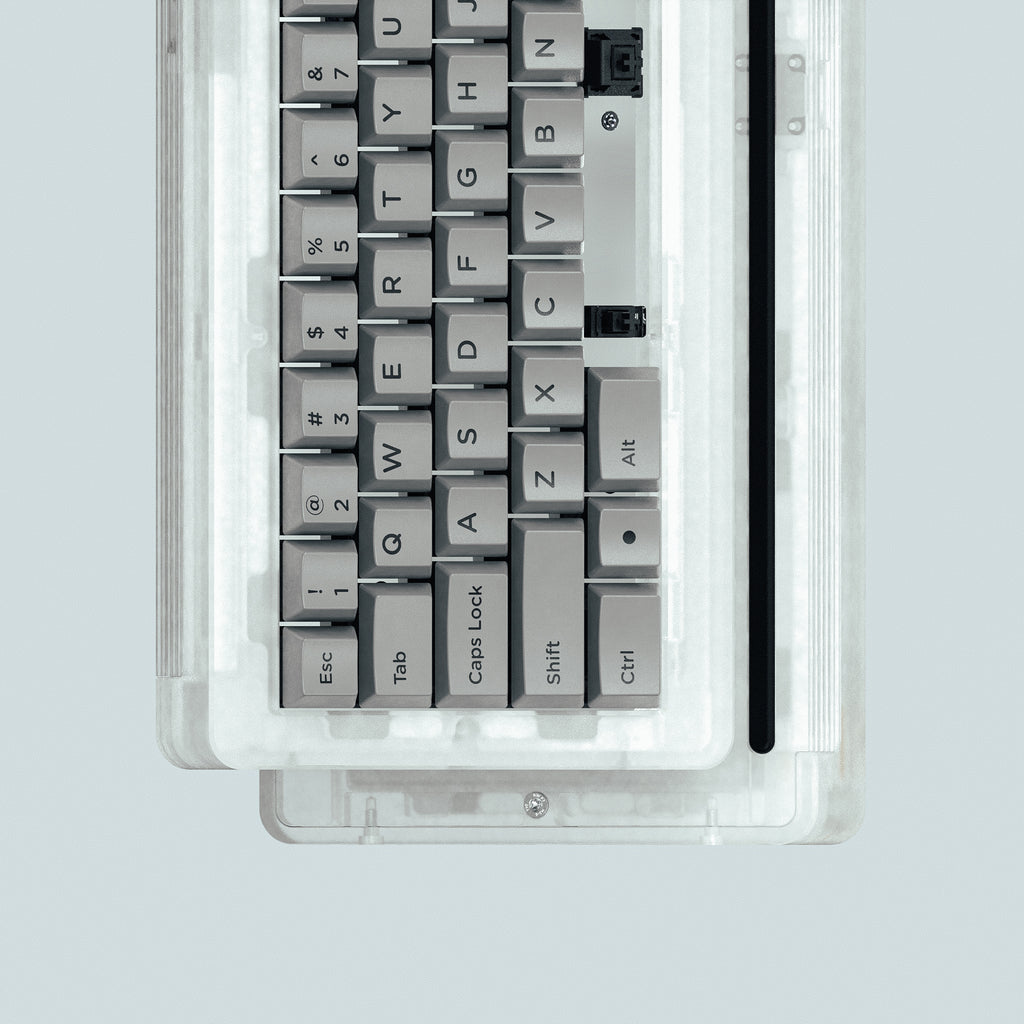

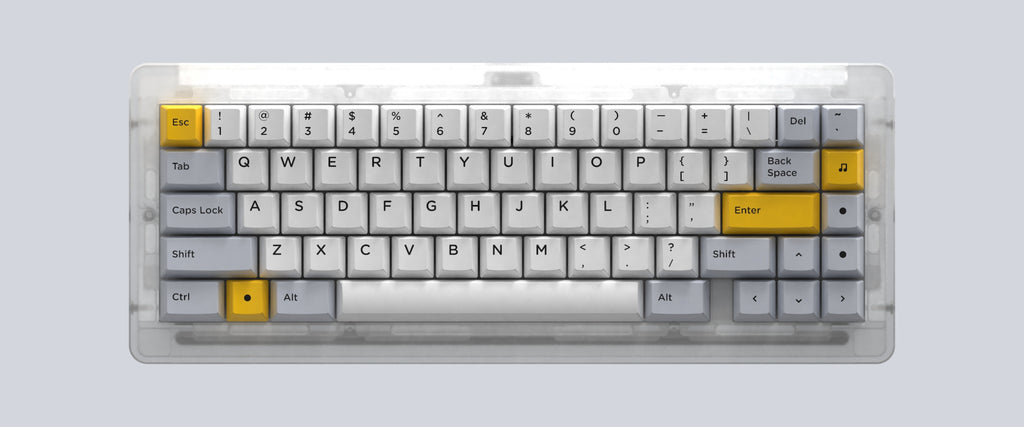

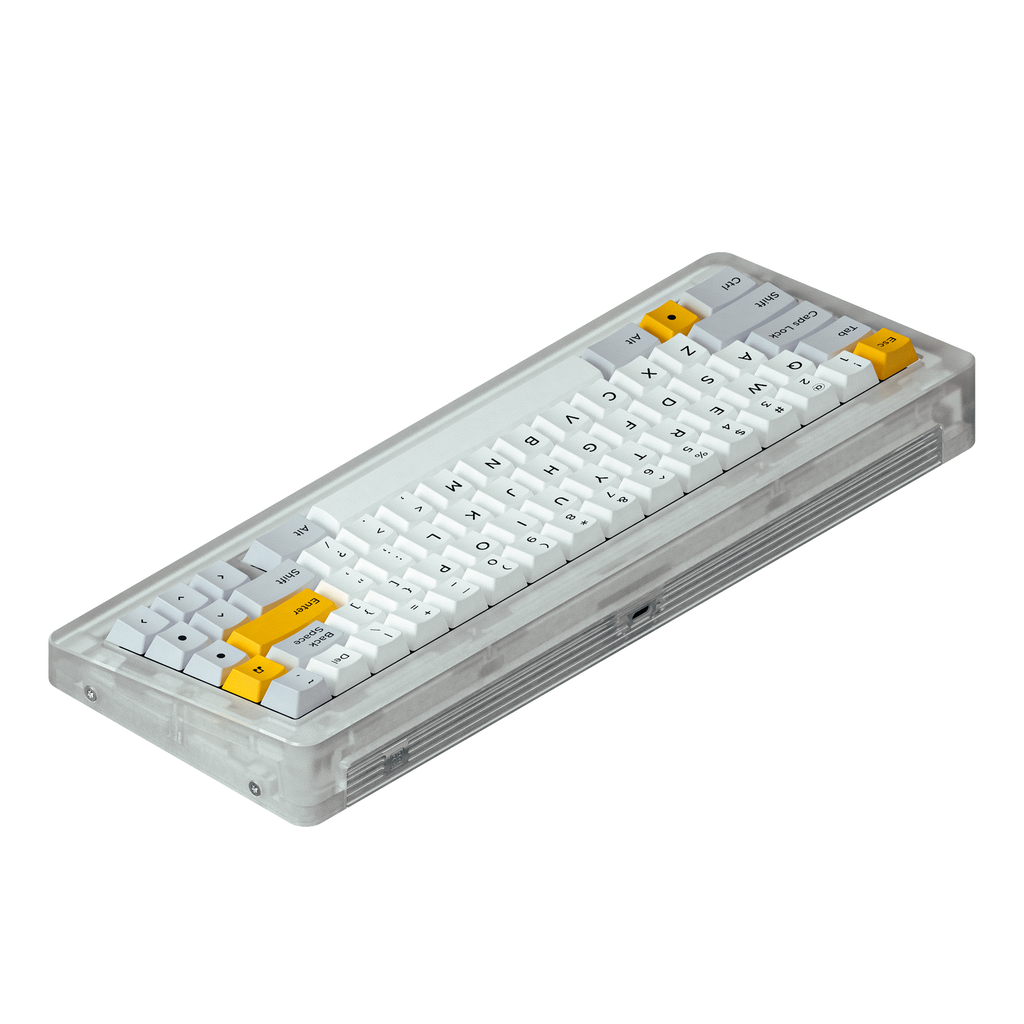

ICED
MILK

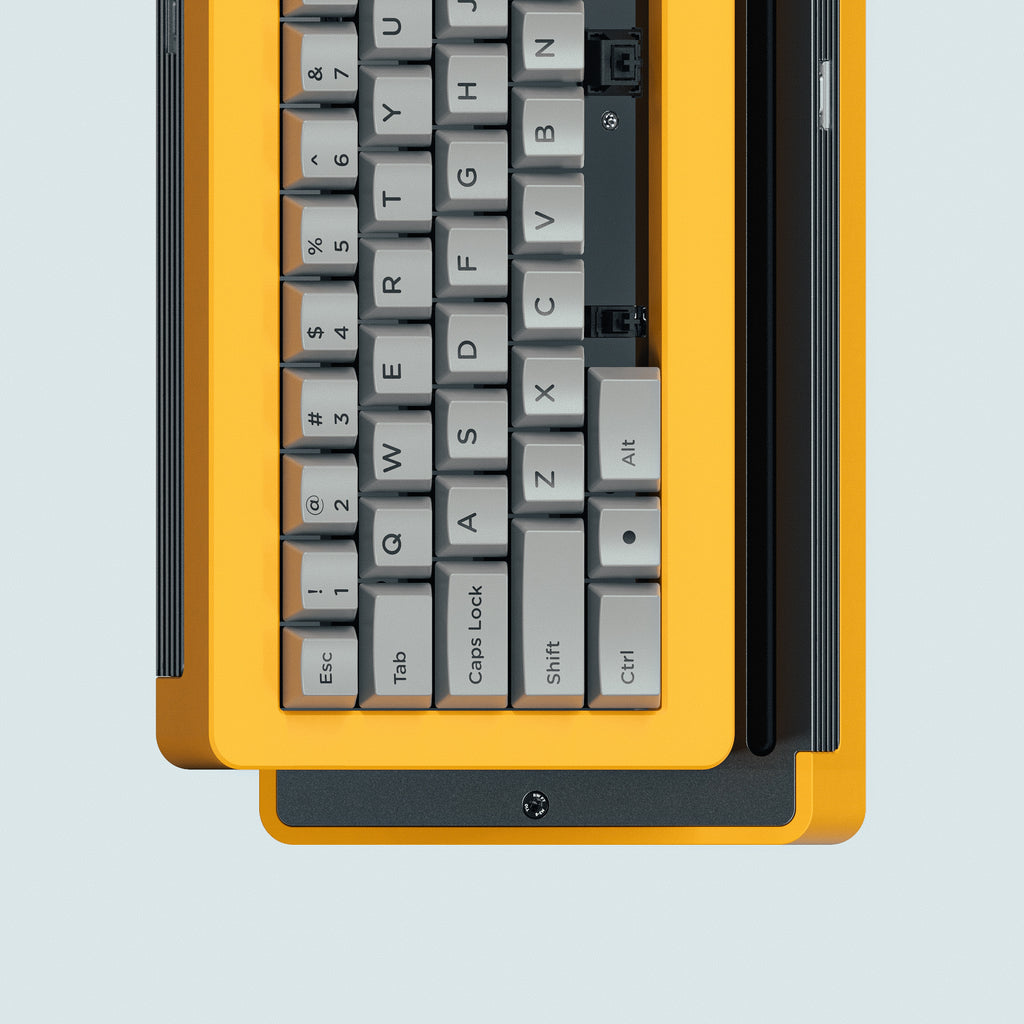

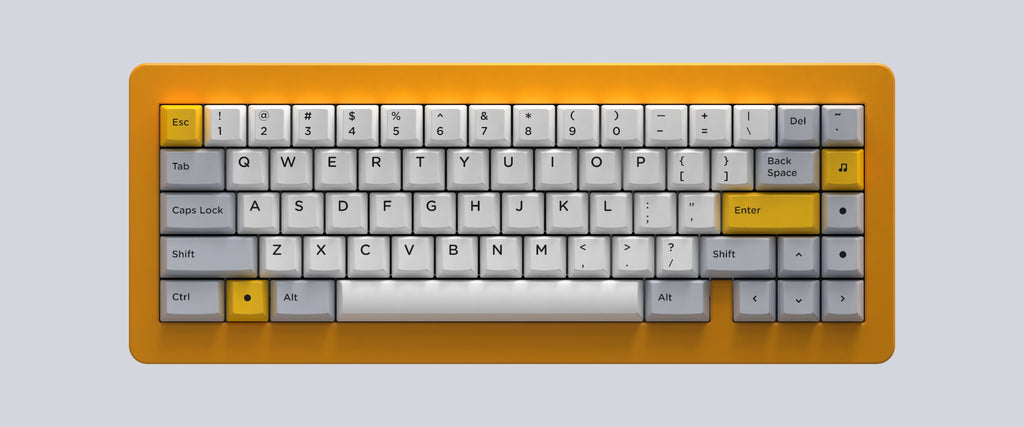

YOLK
ROSE

GO HEAVIER


There is also an optional interior weight for extra heft and resonance. The optional interior weight is a beadblasted brass weight which has been PVD coated. The weight adds some extra stability to the exceptionally solid build of the M65-B.

DAMPENER


The optional interior dampener is a moulded silicone insert which absorbs the sound inside the keyboard for an adjusted acoustic signature. There’s a new ICED variant to match the new edition M65-B.

RW FT MX-X T10 A FASTENERS


The M65-B utilises our custom fasteners. You’ll only need one tool, a Torx T10 driver (included), to assemble and disassemble most of the keyboard. Except for the CSK screws in the plate which uses a T6 driver (included)

HEAVY INDUSTRY SEQ3


We’re bringing back Heavy Industry PBT to outfit the M65-B

WHAT THE M65-B SHIPS WITH


1 x Top Enclosure
1 x Base
1 x Mirror Polished PVD Plate (Brass)
1 x MUTE Mount - ICED (Non-Conductive Silicone)
2 x Custom Moulded RW Feet
4 x RW M2x4 T10 Fixtures
6 x RW M2x3 T10 Fixtures
6 x RW M2x3 CSK T6 Fixtures
6 x RW M2x3.5 Spacer
6 x RW M3x6 T10 Fixtures
1 x M65-B PCB with Kailh Sockets (OR M65-Bx PCB)
1 x RW T10 Torx Tool
1 x RW T6 Torx Tool
1 x Black Metal End USB-C to USB-A cable (USB 3.0) (Braided) - 1.5M
1 x RW Switchpuller XO
1 x Various Packaging
