M60-B PCB (Extra)

RAMA WORKS®

M60-B PCB (Extra)

M60-B PCB (Extra)

$80.00

More information here: http://rama.works/M60-B

NOTE: This is a PREORDER. Shipping will commence when manufacturing/assembly has completed. Follow https://rama.works/prototype for the latest updates.

ALREADY INCLUDED WITH THE M60-B

Pre-order closes on January 31st 2022 AEDT. Any extra stock allocation past this date can be ordered until exhaustion.

Product Name:

M60-B PCB

Part Number:

RW-M60-B-1-PCB (Hotswap)
-------------------------------------------------------------------------------

Product Description:

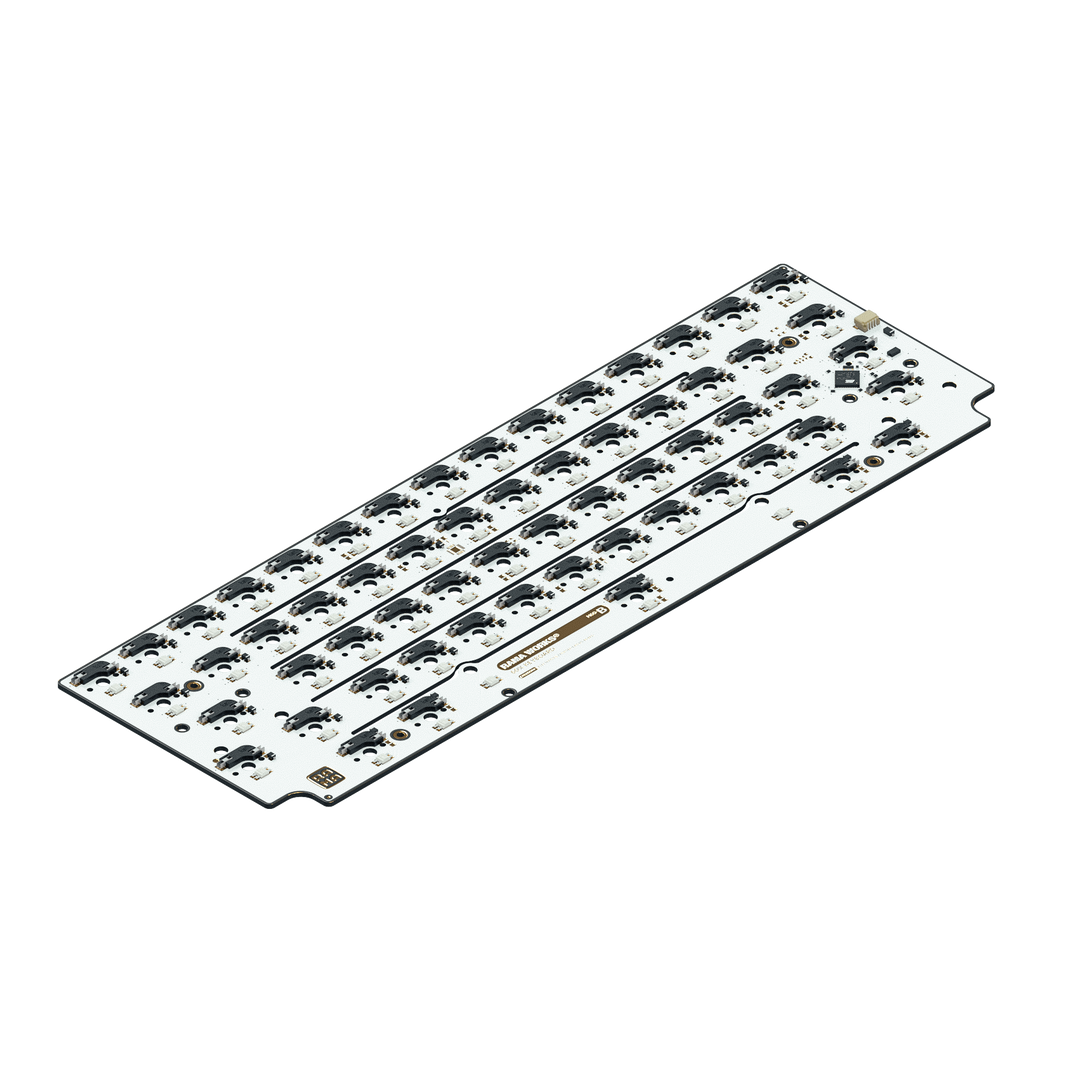

In an effort to provide the best end-user experience available, this M60-B PCB requires no soldering to construct with any Cherry MX-compatible switches. The M60-B offers a USB-C connection attached to the USB Extension PCB. The board includes in-switch RGB LEDs under the PCB, which require no installation.

Not yet shown in the rendered image, the M60-B will feature flex cuts to further enhance the typing experience. These images will be updated later to reflect these improvements.

Cross-compatible with KARA

Not backward compatible with the M60-A

-------------------------------------------------------------------------------

Product Color Options:
White soldermask

Interface:
USB-C

Features:

In-Switch RGB LED

Hotswap Switch Sockets (hot-swappable/no soldering required)

PCB compatible with QMK firmware / VIA

-------------------------------------------------------------------------------

Contents:

1 x M60-B PCB

1 x U1-C PCB (USB-C Interface board)

1 x U1-C to M60-B PCB CABLE

Various Packaging

-------------------------------------------------------------------------------
